CNC Dummy Checks!
Explore This Section
Home
Home
Team
Scholarship
Teaching
Research
AMBIT Tutorials
CNC Tutorials
Equipment
Are my tools correct?
Did I install the correct tool diameter/flute/etc.?
Do the tool numbers match with the CAM setup?
Did I measure all of my tool lengths?
Did I measure tool diameters (only if using radial compensation)?
Is my WCS (G54, G55, etc.) correct?
Is my (0,0,0) on the correct corner/point of my stock?
Does the Z-height look correct with tool length compensation applied?
Does my stock size match the CAM setup?

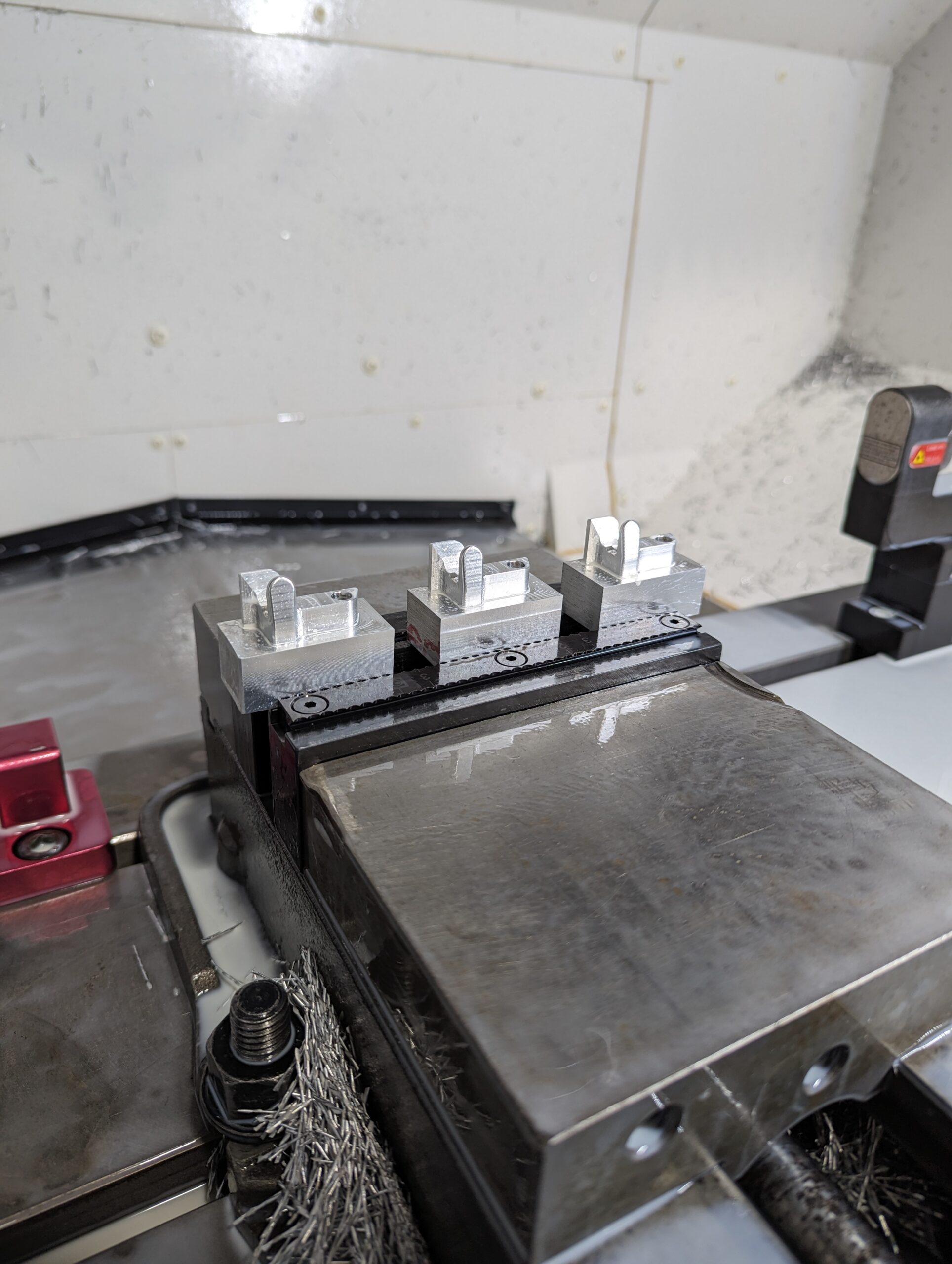

Is my fixturing adequate?
Did I tighten the vise?
Is there enough stock above the vise jaws to prevent a crash?
Is there enough stock below the vise jaws to prevent pullout?

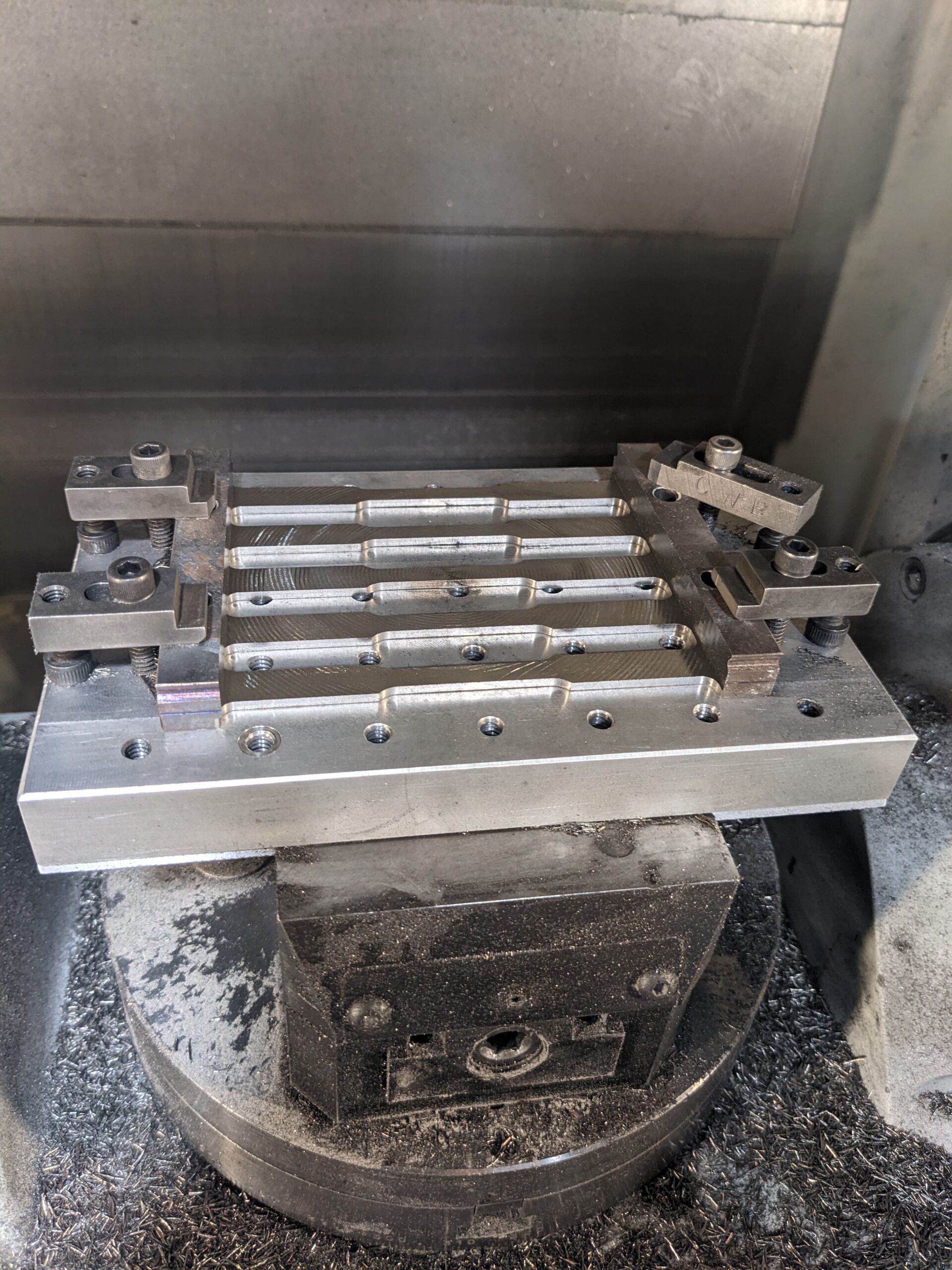

Did I account for my fixture locations in CAM?

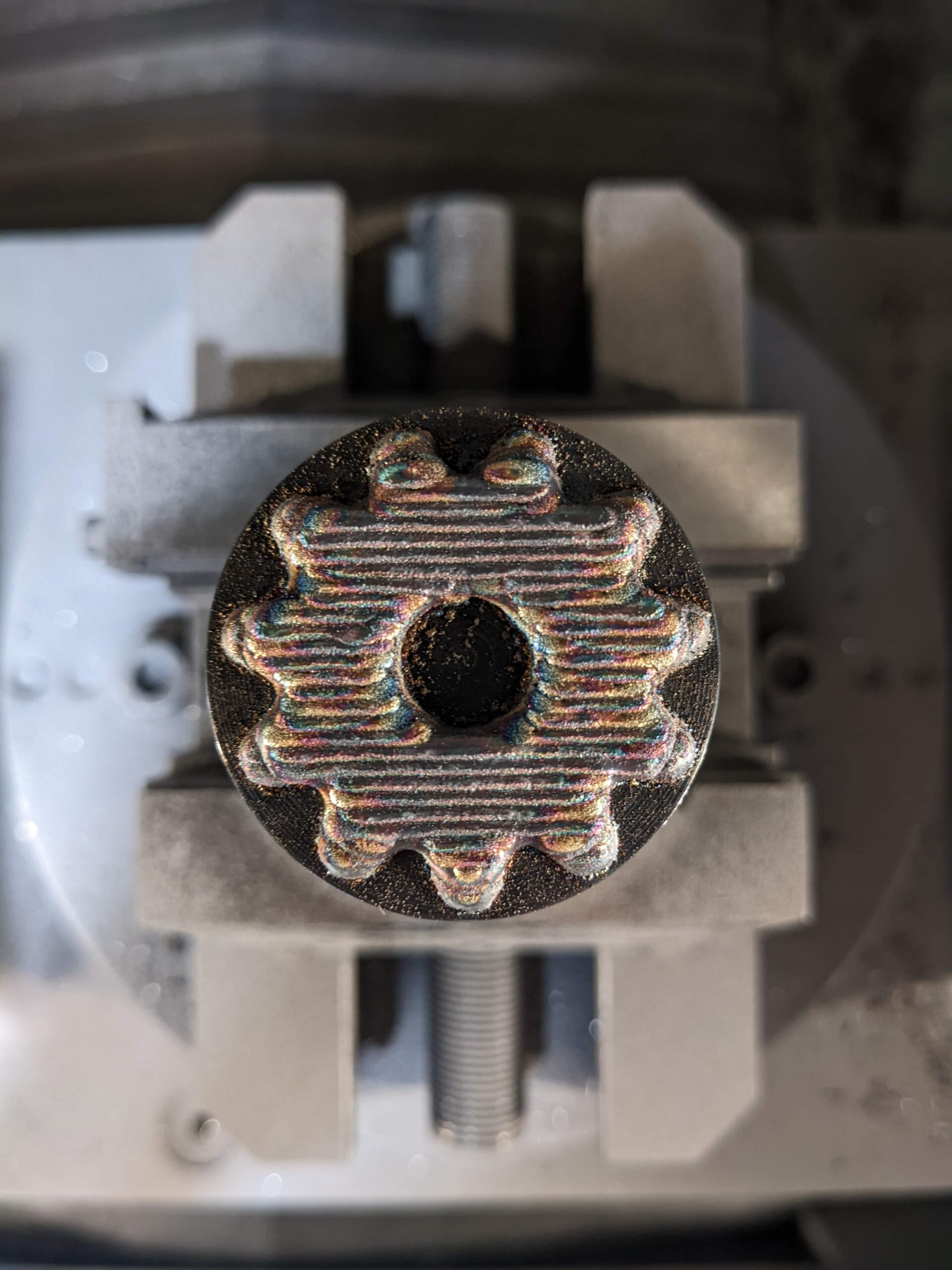

DED-specific checks
Is the manifold docked correctly to the tool?
Are the optical windows in the tool and manifold clean?
Did I set my recipes in the AMBIT controller?
Does my tool length include the 10mm height offset?
Did I turn on all the peripherals?
Make sure to press
Run
on the laser chiller!
